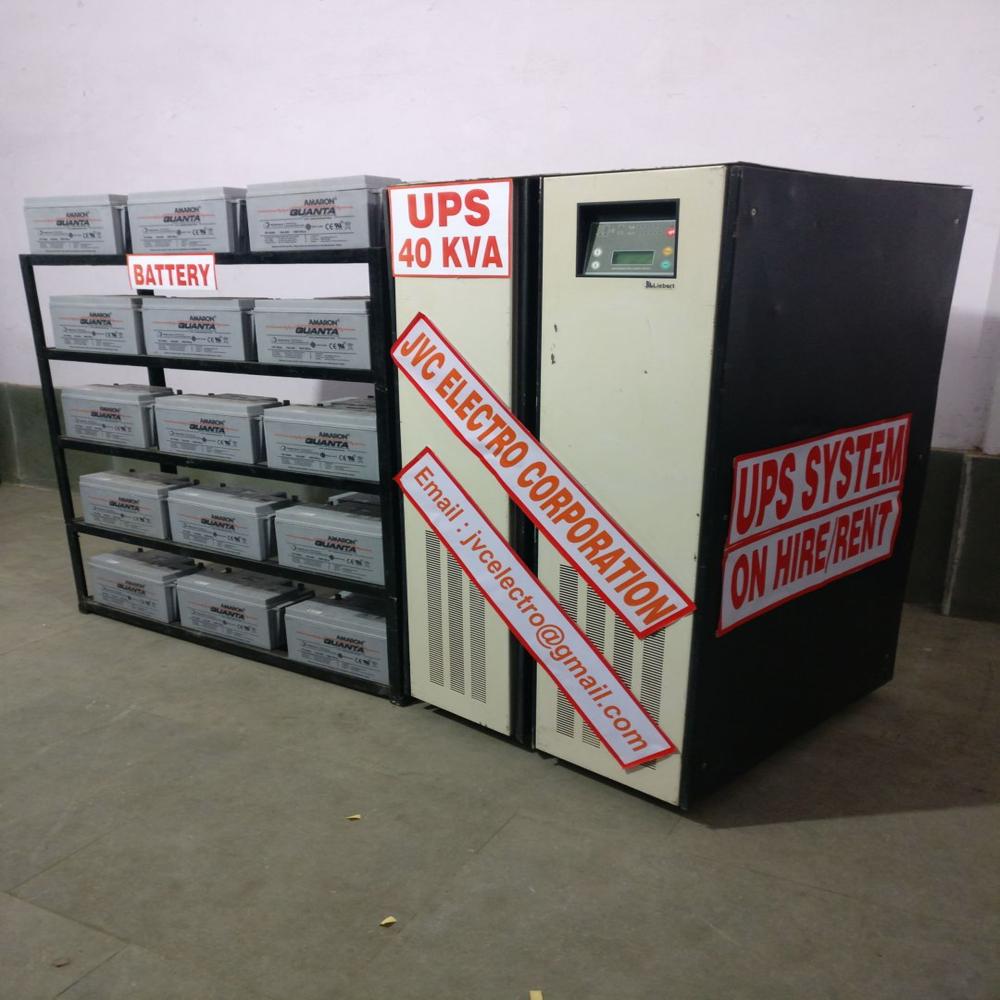

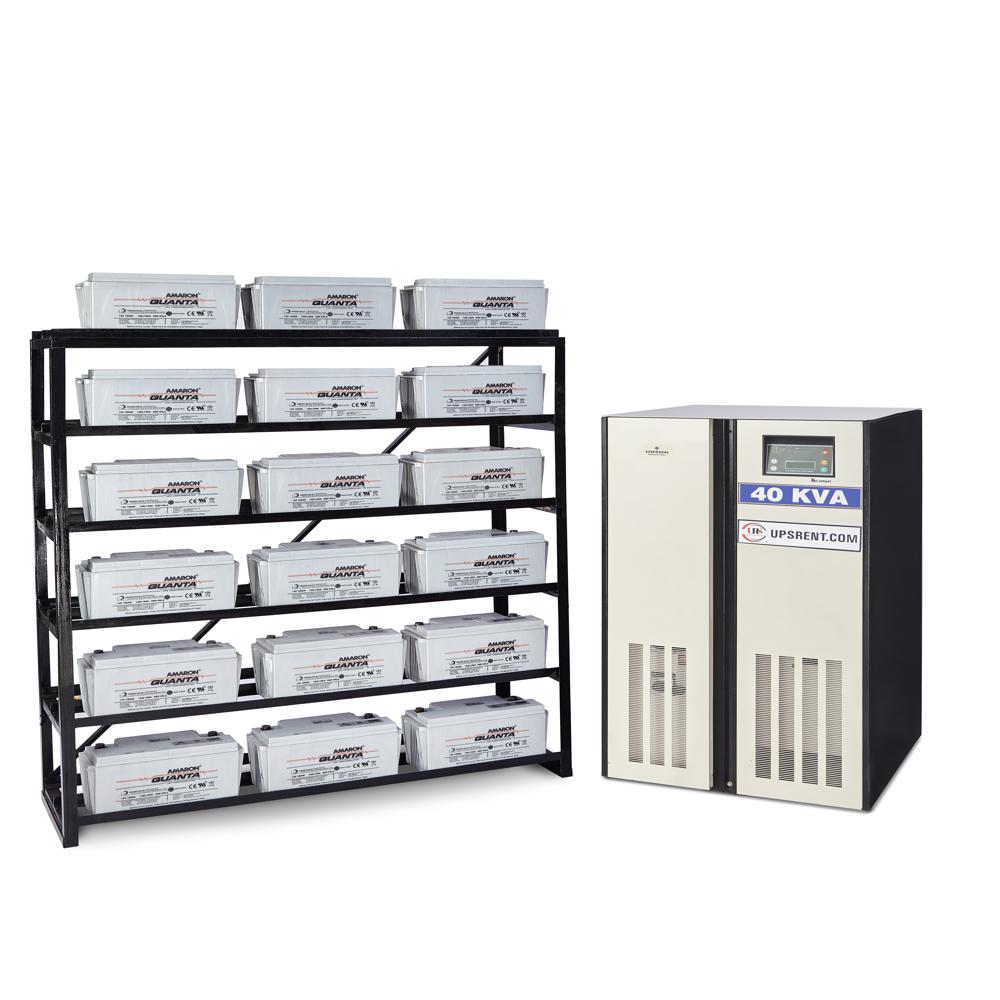

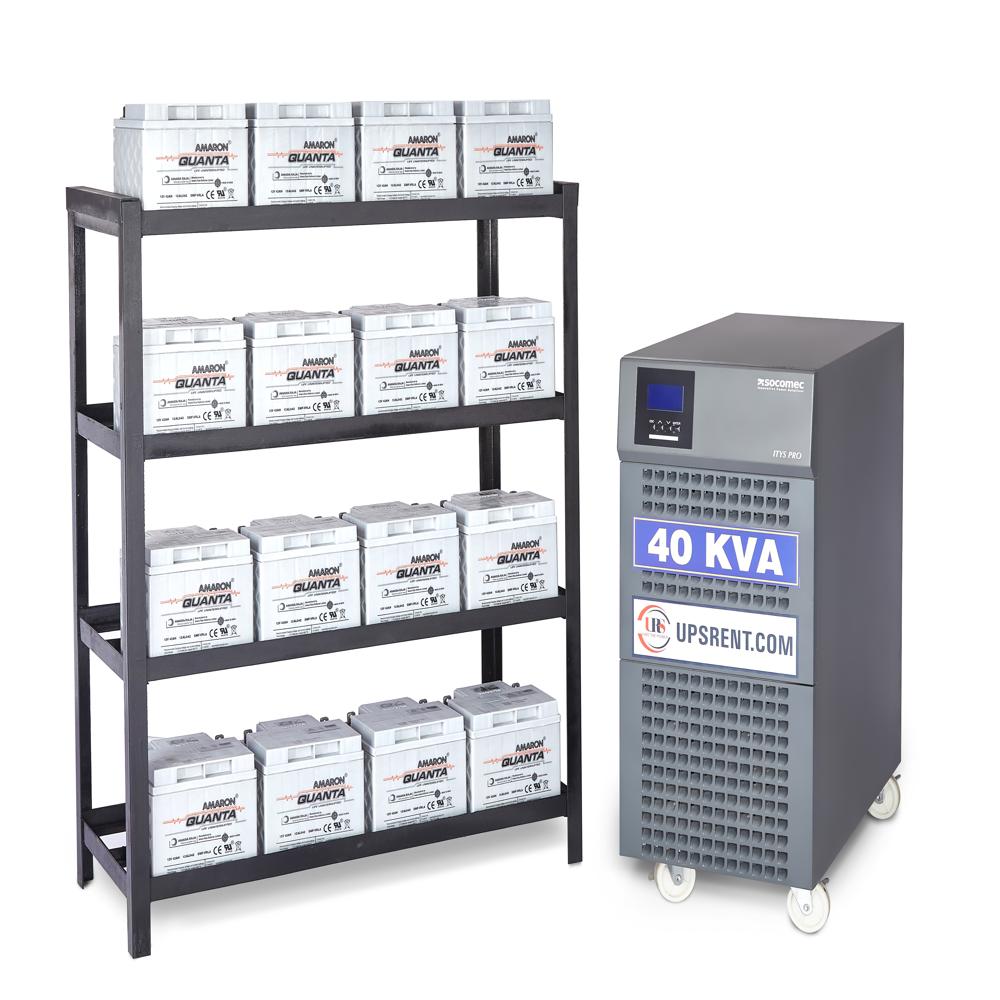

40 KVA UPS on rent

About 40 KVA UPS on rent

Liebert 7400M 40 kVA UPS Specifications

Power Rating:

• Apparent Power (kVA): 40 kVA

• Active Power (kW): 32 kW

• Power Factor: 0.8 (0.9 optional)

Environment:

• Noise: 56 dBA

• Operating Temperature: 0C to 40C

• Storage Temperature: -25C to 70C

• Humidity: < 90% at 20C

• Altitude: < 1000 m (de-rate by 1% per 100 m between 1000 and 2000 m)

Physical Characteristics:

• Depth: 800 mm

• Width: 710 mm

• Height: 1400 mm

• Weight: 540 kg

• Ingress Protection Class: IP 20 (IP 31 on request)

• Color: RAL 7021

Input:

• Rectifier Type: 6-pulse (optional 12-pulse)

• Voltage: 380/400/415 V 15% (3-phase, 3-wire)

• Frequency: 50 or 60 Hz 10%

• iTHD: < 3%

• Power Factor: Up to 0.99

Bypass:

• Voltage: 380/400/415 V (-10% to +10%), 3Ph 4W

• Frequency: 50 or 60 Hz 5%

DC/Intermediate Circuit:

• DC Ripple: <1% with battery connected

• DC Nominal Voltage: 384 V / 396 V / 408 V

• Battery Types: NiCd / Wet / VRLA / SMF

Output:

• Voltage: 380/400/415 V (3Ph 4W)

• Voltage Stability:

  • Steady State: 1%

  • 100% Load Step: 5%

• Power Factor: 0.9 lag to 0.9 lead w/o derating

• Frequency: 50 or 60 Hz

• Frequency Stability:

  • With Bypass Synchronized: 1%

  • Auto-Synchronized: 0.1%

  • Free Running: 0.1%

• Efficiency: Up to 93%

Overload Capacity:

• 3-Ph: 110% for 60 min, 125% for 10 min, 150% for 1 min

• 1-Ph: 200% for 30 seconds

• Short Circuit Current:

  • 3-Ph: 1.5xIn for 5 seconds

  • 1-Ph: 2.2xIn for 2 seconds

Voltage Distortion:

• With Linear Load: <1%

• With 100% Non-Linear Load: <3% (Ph-N), <5% (Ph-Ph)

Other Output Features:

• Max Deliverable Power: 120% In

• Unbalanced Load: 100%

• Voltage Displacement with 100% Unbalanced Load: 2%

• Output Voltage Dis-Symmetry: 2%

Communication Options:

• SNMP / HTTP / RS-485 / MODBUS / SiteScan / Multilink / 5V
